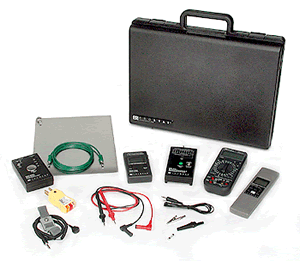

PCK-40 ESD Coordinator's Kit

Easy to use system for day to day ESD survey requirements

The PCK-40 ESD Coordinator's Kit is designed to be an easy to use system that meets your day to day ESD survey requirements. It performs a variety of ESD assessments, including: Floors, Worksurfaces, Equipment, Chairs, Carts, Wrist Straps, Footwear, Raw Materials, Production Aids, Packaging Materials and other ESD control products. All necessary leads and cabling are included in a convenient accessories box.

The PCS-715A Static Locator is a non-contact meter that indicates electrostatic field voltage and polarity on charged surfaces. This easy to use instrument comes equipped with a Power On/Hold button and a Zero button. Its auto-zero feature quickly adjusts the meter's reference to the user as a ground plane.

The PSI-870 Surface Resistance/ Resistivity Indicator is an LED indicating, wide range resistance measurement instrument with broad application flexibility. This device offers four operational modes and gives simple, repeatable measurements to indicate whether a material is conductive, static dissipative or insulative.

The PMT-872 Wrist Strap/Footwear Checker is a unique, highly portable, battery operated multi-function PASS/FAIL performance verifier. It confirms the operational resistance range of single and dual conductor wrist straps, heel straps and ESD controlled footwear. A footwear test plate, snap connector and lead are provided.The PHT-770 Hygro-Thermometer is an accurate, battery operated temperature and humidity indicating instrument. Its large LCD displays both temperature and humidity measurements simultaneously.

The PHT-770 provides several features such as "Data Hold", Recall MIN/MAX measurements, and selection of ° F or ° C. It offers the same performance and accuracy as models costing 2-3 times as much.

Applications:
  • Measure electrostatic field voltage and polarity on charged surfaces
  • Measure resistance to ground
  • Measure resistance point to point
  • Test single and dual conductor wrist straps
  • Measure humidity and temperature
  • Measure current and voltage
  • Measure resistance in chairs, carts and other equipment
  • Evaluate common point grounds
  • Indicate material surface resistance per ANSI/ESD S11.11
  • Indicate material surface resistivity per ASTM D-257
  • Test footwear and heel straps

SPECIFICATIONS:

Test According To
ESD S1.1 Wrist Straps
ESD S2.1 Garments
ANSI/EOS/ESD S3.1 Ionization
ESD S4.1 Worksurfaces
 EOS/ESD S6.1 Grounding
ANSI/ESDS7.1 Flooring
ESD S12.1 Seating

Packaging

Weight: 10 lbs (4.5 kg)
Length: 16.5 Inches (42 cm)
Width: 4 Inches (10 cm)
Height: 14.5 Inches (37 cm)
Technical Documents:
» PCK-40 Data Sheet
