Item Number:
PMM-810

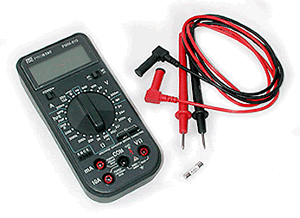

PMM-810 Digital Multimeter

The PROSTAT PMM-810 Digital Multimeter is five meters in one.

The PMM-810 is very useful for measuring the low lead resistance of Workstation ESD common point ground connections.

An ESD auditor will find it a handy wide range digital resistance meter for quick measurements of chairs, carts and other equipment, up to 2.0x109 ohms.

This rugged meter provides eleven functions including diode test, capacitance, transistor hFE, frequency, logic test, resistance, voltage and current measurements. An input warning beeper warns the user if the test leads are plugged into sockets that do not match the function selected.

The PMM-810 includes color coded safety input jacks, large 3-1/2 digit LCD display, overload protection on all ranges, Frequency Autoranging selection from 20 - 20M Hz, and fused protection for current inputs. It is delivered with test leads, 9V battery installed and an extra fuse.

SPECIFICATIONS:

Power:
Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22

Display:
3 1/2 digit liquid crystal display (LCD) with a maximum reading of 1999

Polarity:
Automatic, positive implied, negative polarity indication

Over Range:
(OL) or (-OL) is displayed

Zero:
Automatic

Low Battery:
The Low Battery indicator is displayed when battery voltage drops below the operating level

Measurement Rate: 2.5 times per second, nominal

Functions & Ranges:
Resistance Ranges: <0.1 ohms - 2000 Megohms
Continuity Audible Indication: less than 100 ohms
Diode Test: Test current 0.8mA ±0.3mA
Capacitance: Ranges 2nF, 20nF,200nF, 2uF, 20uF
Transistor hFE: Ranges 0-1000 Base Current: 10 µAdc » (Vce=3.0Vdc)
Frequency: Ranges 2kHz, 20kHz, 200kHz, 2MHz, 15MHz
Logic Test: Threshold; Logic Hi (2.8 ± 0.8V) - Logic Lo (0.8 ± 0.5V)
DC Volts & AC Volts Ranges: 200mV, 2V, 20V, 200V, 600V
DC Current & AC Current Ranges: 20mA, 200mA 10A

Accuracy:
See Operations Manual; Stated accuracy at 23oC ± 5oC, <75% Rh

Battery Life:
200 hours typical with carbon-zinc

Dimensions:
Width: 2.8" (7 cm)
Depth: 1.5" (3.9 cm)
Length: 5.8" (14.7 cm)

Weight:
12.2 ounces, with batteries

Test Leads:
37" long each

Accessories:
2 Test Leads, One spare fuse (0.5A/250V Fast Blow) 9V battery installed

Operation Environment:
0oC to 50oC at < 70% relative humidity

Storage Temperature:
-20° C to 60° C, 0 to 80% relative humidity with battery removed
