Fabric Wrist Straps
PWS-610M Fabric Band Wrist Strap
Item Number
PWS-610M

Wrist Strap Contents
  • PWS-620B Fabric cuff with Adjustable Buckle and 100mm snap cover
  • PWS-610PGC Personal Ground Cord Lightweight-Heavy Duty with installed 1 meg Ohm Resistor
  • Metal Alligator Clip

Packaging
Weight: 0.5 lbs (0.2 kg)
Length: 8.25 Inches (21 cm)
Width: 7.5 Inches (19 cm)
Height: 3.5 Inches (8.5 cm)

PWS-610M Fabric Band Wrist Strap

Designed for durability, lightweight portability and comfort

In conjunction with the best product designers in the ESD industry, PROSTAT has created new refinements in wrist strap technology. PROSTAT wrist straps are specially designed for durability, lightweight, portability and comfort.

These unique personnel and instrument grounding products are intended for use in demanding, high performance applications where reliability is the priority.

Compared to traditional wrist straps with fabric cuffs and 10 ft cords, the PWS-610 weighs 60 percent less (under 1 ounce) and uses 1/3 the working or storage space of a standard assembly. The PWS-600 series is so compact that it can be easily carried or stored in a pocket, mini audit kit, or small cabinet spaces.

Its knit, two way stretch fabric cuff is extremely comfortable and fully adjustable.

SPECIFICATIONS:

Cuff Assembly
Buckle: 1.0W x 1.0L x 0.25H inches. Gray, Adjustable with positive lock, stainless steel back plate. Standard male 5/32" snap (0.154 inch, 4mm); provides 360° performance. Patented, Easily adjusted buckle incorporating a positive fabric lock to eliminate slip and enhance skin contact. Non-sensitizing stainless steel back plate.
Fabric: 0.85 inches wide. Grey, knit incorporating silver plated filament and elastic nylon. Insulative outer cuff surface, conductive inner cuff surface.
Size/Length: Nominal 6.5" After stretching to 2x length and relaxing.
Adjustable: Easily adjustable to fit all personnel.
Control: Date coded and PROSTAT manufacturer's logo embossed on all cuff assemblies
“M" series cuffs: Incorporate a 10mm male snap and insulated snap cover installed in the fabric approximately 1.5 inches from the cuff buckle. The 10mm snap is used to mount and ground the PROSTAT PFM-711A Field Meter and CPM-720A Charge Plate Monitor.
Cord Assembly
Cord: Heavy Duty, Lightweight construction of Single bundle, laced tensile conductors reinforced with synthetic fibers. Cord Diameter: 0.06" Coil Diameter: 0.26" Alligator clip supplied.
Resistor: One megohm (±10%) resistor molded into snap connection
Ground Connection: Standard banana plug
Warranty: Warranted for One Year against mechanical and electrical defects.
Cord Extension: Full extension greater than 13 feet; Working Length greater than 10 feet.
Tested:
Provides over 100,000 bending cycles per EOS/ESD-S1.0-1987 procedures.
Adjustable Elastic
Item Number
WS-AE-713-6

Adjustable Elastic

Wrist Strap/Coil Cord With Cam-lock Buckle

Our soft, elastic fabric wrist band is fully adjustable and provides a very comfortable fit on any size wrist. The 90% exposure of hypoallergenic conductive silver threads provides maximum skin contact. Connected to the wrist band is a durable polyurethane coated coil cord which ends in a banana jack. This cord comes standard with a one megohm resistor and alligator clip adapter.
  • Meets or exceeds the requirements of EOS/ESD Standard #1, MIL-STD-1686, MIL-HDBK-263 and EIA 625
  • UL Listed
  • Available with 6’, 10’, or 12 ft. coil cord
  • The high quality coil cord strain relief will withstand in excess of 20,000 bending cycles
  • Cam-lock buckle allows for adjustability and secure closure
  • Date coded for QC traceability

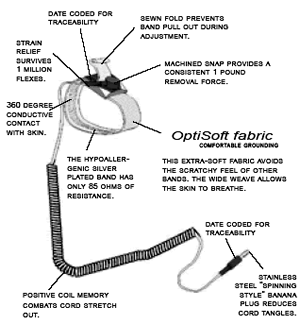

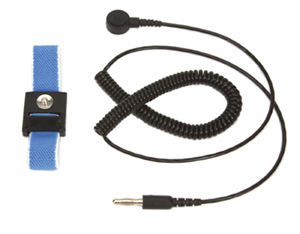

Wrist Strap : Elastic Fabric Adjustable

Item Number
WS-AE-813

Wrist Strap : Elastic Fabric Adjustable

Wrist Strap : Elastic Fabric Adjustable

This premium performance wrist strap set features a fully adjustable, stretch elastic, silver fabric wristband and +1 million flex cycle coiled cord. The hypoallergenic, 85 ohm silver-plated band provides 360 degree conductivity around the wrist for maximum skin contact. Each cord is tested for electrical performance. Sold in sets or individually. Select a 6 or 12 foot cord, a 4 or 10mm snap, and a straight or right angle banana plug.

FEATURES:

  • Premium Performance.
  • Machined Snap (4mm) for a reliable connection.
  • Soft, hypoallergenic silver plated band fabric.
  • Band features an adjustable, locking clasp and a stainless steel backplate.
  • Cord is 100% Tested for reliability.
  • The high tensile strength cord lasts over 1 million flexes.
  • Spinning banana plug reduces cord tangles.
  • UL listed. Date coded for traceability. Made in the USA.
  • Meets or exceeds the requirements of ANSI/ESD S-1.1, ANSI/ESD S-20.20, EIA 625, MIL-STD-1686
SPECIFICATIONS:
Meets or exceeds the requirements of ANSI/ESD S-1.1, ANSI/ESD S-20.20, EIA
625, MIL-STD-1686, and MIL-HDBK-263. MIL-STD-1686, and MIL-HDBK-263,
and EIA 625.
Band
Fabric: OptiSoft Elastic Nylon with silver plated threads
Resistance: 85 ohms typical
Contact: 360 degrees around wrist
Color: Light Blue with white edges
Snap: 4 mm machined post
Snap Release: 1 - 5 pounds
Markings: Date Code
Back plate: Stainless Steel medical grade
 Cord
Length: 6 or 12 feet, extended
Resistor: 1 megohm
Flex life: 1 million flexes
Color: Black
Markings: Date Code, resistance
Banana Plug: Spinning, stainless
Snap: 4mm
Technical Documents:
» Fabric Wrist Straps Data Sheet
» Adapters for Snaps Data Sheet
ZS Cream
Wrist Strap & Footwear MonitorsWrist Strap & Footwear Monitors:
GZ has the latest in Wrist Strap Monitors for single or dual models.


WARNING:
A one-megohm resistor has been molded into the plastic cap on the ground cord fastener. DO NOT REMOVE. If it becomes damaged, replace ground cord immediately. Do not use in areas where the individual may come in contact with electrical circuits exceeding 250 volts.

CAUTION:
The Ground Zero wrist strap is for static control. It will not reduce or increase your risk of receiving electrical shock when using or working on electrical equipment. Follow the same procedures you would use without wrist straps, including:
* Make certain that equipment having a grounding type plug is properly grounded.
* Make certain that you are not in contact with grounded objects other than through the strap.
