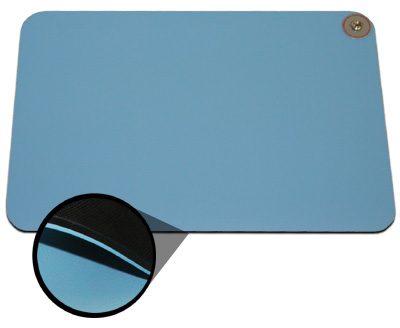

High Temperature Rubber ESD Matting
Item Number:
BM-UC-E(L x W) - Blue Top, Black Bottom
free samples

Ultra Con Elite
2-LAYER High Temperature Rubber ESD Matting

Ultimate static safe work surface for electronic assembly areas.

  • Premium mechanical and electrical performance
  • Static-dissipative top layer
  • Fully conductive backing
  • Highly resistant to solder, fluxes and chemicals
  • Soft yet durable
  • Easily cleaned
  • Meets or exceeds: EIA 625, MIL-HDBK-263 and MIL-STD-1686

SIZES AVAILABLE:
30" X 30' Roll
Custom and precut sizes available

PHYSICAL PROPERTIES:
Thickness: 1/4" (standard)
Note: All custom and precut mats are cut within + or - .125".
Tensile, >1000 PSI
Durometer > 60 (Shore A)
Colors: Blue top, Black bottom
Available in custom cut or roll form, 3-layer

ELECTRICAL PROPERTIES:
PTP
EN 100015.1 5x106 - 5x108
EOS/ESD.S4.1990/100 V 1x107 - 1x109
EOS/ESD.S4.1990/10 V 1x107 - 1x109

RTG
EN 100015.1 5x106 - 5x108
EOS/ESD.S4.1990/100 V 1x106 - 1x108
EOS/ESD.S4.1990/10 V 1x106 - 1x108

Charge Decay
FED TM 101 (From 5000 to 50V) 0.01 sec

CHEMCIAL RESISTANCE:
Determined according to the standard DIN 51958
NA=No Alteration
AA=Appearance Alteration
HA=Hardness Alteration

CHEMCIALS
2 min.
1 hour
24 hours
Acetic Acid
NA
NA
NA
Ammonia (10%)
NA
NA
NA
Sulfuric Acid (30%)
NA
NA
NA
Nitric Acid (10%)
NA
NA
AA
Hydrocloric Acid (10%)
NA
NA
AA
Sodium Hydrate (10%)
NA
NA
AA
Sodium Hypochlorite
NA
NA
NA
Sodium Carbonate (sat.)
NA
NA
NA
Hydrogen Peroxide
NA
NA
NA
Ethyl Alcohol (50%)
NA
NA
NA
OIL ASTM 1
NA
NA
AA
OIL ASTM2
NA
NA
AA
Petroleum
NA
NA
AA
Black Printing Ink
NA
NA
AA
Perchloroethylene
NA
NA
AA & HA
Beer
NA
NA
NA
Butter
NA
NA
AA
Citrate Acid
NA
NA
AA
Carbonated drinks
NA
NA
NA
Fruit Juice
NA
NA
NA

About Ground Zero's ESD and Static Control Table Matting
ESD mats for work bench tops and tables are a dependable method of controlling static, but don't get fooled. All mats DO NOT perform the same. Some fade with use, some just aren't conductive enough (or too conductive) to pass critical audits. ALL of our custom cuts and roll goods are checked prior to shipment to your facility. EACH & EVERY custom cut mat is tested to the latest standards and comes with a certification to help with your ISO needs. READY to go to work in your environment with professional looks, heavy duty grounding hardware and complete certified confidence.

At Ground Zero your needs count! We offer a full selection of ESD mat materials for use in bench top coverings and flooring runners. Available in both Bulk Form (rolls) or Custom Cut ESD matting that meets your size requirements. Our "custom cuts" can be shipped with or without grounding hardware or peel-and-stick adhesive (so your mats won't slide around) and can be configured with our static control constant monitors. But best of all no wasted material, hassles or cut fingers.
