Pressure Regulator -
To Adjust the pressure on the seal bar
5 Micron Filter with Auto Drain will protect sealer components
RS-232 Communication Port.
You can view and document every bag being sealed during your production run
MTV Medical Vacuum Sealer
Features:
Clean room compatible
Touch screen controls
Fast P I D temperature control with auto-tune
Vacuum gauge
Password protected
Five bag preset menu
Multiple programs
Stainless steel retracting nozzle
No pinch safety jaw and over heat protection
Electronic foot switch start and E stop
SPECIFICATIONS:
Seal:
15” 20” 25” 30” 35” X 1/4”
Max Vacuum
27 in HG
Air Consumption:
5 CFM @ 90 PSI
Voltage:
120 VOLTS AC 15 amps.
Dimensions:
Seal + 6” L x 12” W x 8 1/2” H
Weight:
35, 39, 45, 49, 52 Lbs.
Options:
Serial Communication Port
Dual Nozzle (for faster Packaging)
Vacuum Filter(for Packing with Liquids or Powders)
International Voltages (220/240 AC or 100 AC)

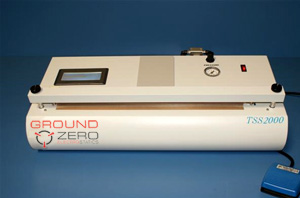

TSS Medical Vacuum Impulse Sealer
MEDICAL TOUCH SCREEN IMPULSE SEALER WITH TEMPERATURE CONTROL
Features:
Temperature Control
Touch screen controls

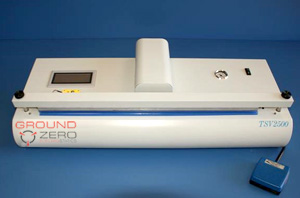

TSV Medical Vacuum Sealer
Features:
Clean room compatible
Touch screen controls
Fast P I D temperature control with auto-tune
Vacuum gauge
Password protected
Five bag preset menus
Stainless steel retracting nozzle
No pinch safety jaw and over heat protection
Electronic foot switch start and E stop
SPECIFICATIONS:
Seal:
15” 20” 25” 30” 35” X 1/4”
Max Vacuum
27 in HG
Air Consumption:
5 CFM @ 90 PSI
Voltage:
120 VOLTS AC 15 amps.
Dimensions:
Seal + 6” L x 12” W x 8 1/2” H
Weight:
35, 39, 45, 49, 52 Lbs.
Options:
Multiple programs
Serial Communication Port
Dual Nozzle (for faster Packaging)
Vacuum Filter(for Packing with Liquids or Powders)
