ESD Plastic Inserts & Trays [Home]

ZeroStat Plastic Inserts

esd plastic inserts

rohs compliant

Some components require extra care to prevent physical and ESD damage. Ground Zero's new standard tooling program allows you to have an economical way to provide an exact fit for your delicate components. Ground Zero's master tool is used with a custom insert made to your specifications for minimal set-up charge. Tray and cover set fit Ground Zero's IC5040 ZeroStat shippers to form a complete package. Choose the appropriate material for your application from Ground Zero stocked ESD plastics.

FEATURES:

  • Static Dissipative
  • RoHS Compliant
  • Permanent Static Dissipative
  • Conductive New!
  • Use Standard Tooling
  • Exact Fit
  • Physical Protection
  • ESD Protection

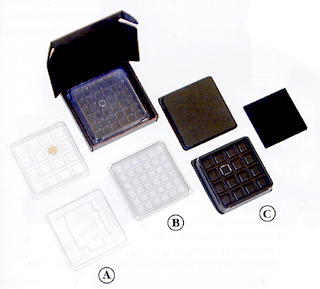

ZeroStat IC 5040 box with thermoformed tray and cover insert. Sold as assembled set.
Minimum quantity order: 1,000 sets. Box I.D. is 3 3 /4 x 3 3 /4 x 1
Maximum cavity size is 2 3 /4 x 2 3 /4 x 3 /4"



 Ground Zero P/N

DESCRIPTION

A

 CCPI-5040-PDI

ZeroStat box with Ground Zero 22 permanent static dissipative tray and cover.

B

 CCPI-5040-CI

Conductive plastic tray and cover.

C

 CCPI-5040-DI

Static dissipative (nonpermanent) tray and cover.

Aqueous Washable Plastics

Aqueous Washable Plastics		 FEATURES:
  • Permanently Static Dissipative
  • RoHS Compliant
  • Clean Room Applications
  • Aqueous Washable
  • Reusable
Ground Zero engineers plastic trays and clamshells that meet the needs of your clean room areas. In addition, the water washable plastics allow you to effectively use trays long term without changing the static protective properties of the plastic. Many static dissipative materials can lose their properties just months after delivery.

TraCaps and Component Trays

TraCaps
rohs compliant		 FEATURES:
  • Jedec Covers - No Tooling
  • RoHS Compliant
  • Custom Trays
  • Prototyping
  • Stock Materials

Ground Zero offers clear static dissipative TraCaps that are made to snap to the top of industry standard Jedec Trays. The TraCap provides dust and static protection while saving the cost of an additional empty Jedec tray. Ground Zero's in-house tooling facility and design group will work with you to design and prototype custom trays to ship or handle your delicate components.

ZeroStat Stacker Trays


esd stacker trays
rohs compliant		 FEATURES:
  • Dissipative Surface
  • RoHS Compliant
  • Stackable
  • Eliminates Bags
  • Durable
  • Recyclable

ZeroStat Stacker Trays are made of durable ZeroStat shielding corrugated. The construction is double wall with injection molded corner stackers attached for secure stacking. The tray includes a dissipative crosslink  foam pad that is loose in the bottom. The foam pad has permanent static dissipative properties and can be turned over to double the physical life of the foam.

Part # Size L x W x D (I.D.)
CT - 6201 18 x 11-3/8 x 1-3/4"
CT - 6202 24 x 18 x 2-1/8"
