Item Number:
PPK-645
Packaging
Weight: 1.5 lbs (0.7 kg)
Length: 14.5 Inches (37 cm)
Width: 10 Inches (25 cm)
Height: 2.25 Inches (5.7 cm)

Call Today to Order 1-877-463-9376


Technical Documents:
» PPK 645 Mat Only Data Sheet

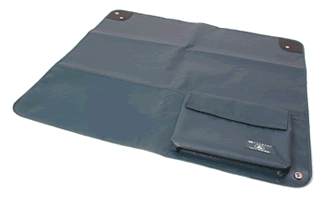

PPK-645 Field Service Mat with Storage Pouch - Mat Only

25 ½ x 24 inches blue Field Service Mat with attached storage pouch

The unique static-dissipative PPK-645 Field Service Mat is designed to easily transport equipment and material. This fabric, featuring a unique multi-layer construction is flexible, non-tacky and color stable.

Using this Field Service Mat allows the engineer to fold and set up a workstation anywhere in the plant. Only available in blue, the PPK-645 Field Service Mat is highly resistant to tearing.

The buried conductive layer is the primary path to ground within the structure. It’s construction provides the same resistance-to-ground measurements from any point on the material. It also includes a handy storage pouch for miscellaneous accessories.

SPECIFICATIONS:

Resistance Rtt:
At 10 volts, 12% RH (Rtt) 106 – 107 ohms
At 100 volts, 50% RH (Rtt) 106– 107 ohms

Resistance Rtg:
At 10 volts, 12% RH (Rtg) 106– 107 ohms
At 100 volts, 50% RH (Rtg) 106– 107 ohms

Min / Max Temperature Range -24ºC to 60ºC (-10º F to + 140º F)

Size:
25 ½ x 24 inches (64.8 x 61 cm)

Storage Pouch Size:
9 ½ x 7 inches (24.1 x 17.8 cm)

Weight:
16 ounces

Thickness:
~ .015 inches

Color:
Blue
