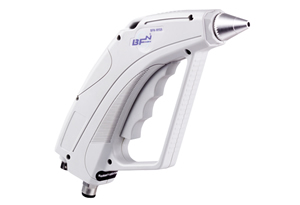

AC Ionizing Air Gun

Compact, Integrated and Powerful

Balanced to 0 +/- 30V, the ION-HFG9 ionizing blow-off gun combines exceptionally fast static decay capability with excellent balance stability. The gun body is lightweight, but durable. Designed to protect most static sensitive devices, the HFG9 creates a reliable high frequency AC ionization output from a specialized piezo-ceramic transformer. A precision, sub-micron filter is optional for clean air or nitrogen delivery.

Ergonomic Design

Easy to hold, easy to use and easy to maintain; the ION-HFG9 features an easy-pull trigger, making it comfortable, even for extended use.

Clean Performance

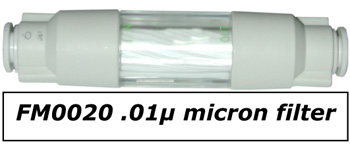

The FM0020 micro filter features a hollow fiber membrane that provides excellent filtration and has a long service life. The compact design is easy to install and comes with quick release connections for fast replacement. All materials used are compatible for the most stringent applications.

FEATURES:

• Stable ionization Output
• High Frequency AC (68KHz) ion emission
• Lightweight ergonomic design
• Power and alarm indicators
• 0.01 micron inline air filter (optional)

benefits:

• +30 volt balance; Assured stability over time
• Reduces emitter cleaning. Extends emitter life. Dense ion output
• Maximizes operator comfort
• Red output alarm illuminates to alert high voltage failure
• Maximizes cleaning potential of the ionizer

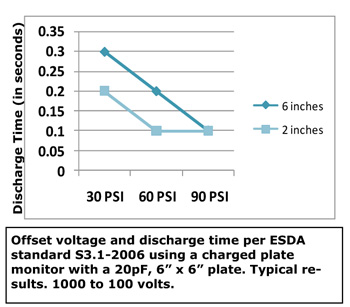

Discharge Time:	1.0 Seconds at 6” and 30 psi (1000V to 100V) 0.5 Seconds at 2” and 60 psi (1000V to 100V)
Power Input:	AC 100V~240V, 50/60Hz
Power Outlet:	un-fused, 0.5A or 1.0A max.
Ion Emission:	AC, 68KHz
Balance:	± 30v
Line Current (at rest):	0.01 Amps
Line Current (operation):	0.10 Amps
Emitter Point:	Tungsten Alloy
Air Inlet:	1/4” quick release (female)
Input Pressure:	84 PSI (6 bar) maximum, clean dry air or nitrogen
Air Consumption:	2.4 SCFM at 30 PSI (68 l/min. at 2 bar) 4.6 SCFM at 60 PSI (130 l/min. at 4 bar) 6.3 SCFM at 84 PSI (180 l/min. at 6 bar)
Replaceable Filter:	0.01 micron
Noise Level:	70 dB at 30 PSI (2 bar) 85 dB at 60 PSI (4 bar) 90 dB at 84 PSI (6 bar)
Measured	24" (600 mm) from nozzle.
Operating Temperature:	32°F (0°C) to 122°F (50°C)
Construction:	ABS Alloy
Tubing:	Polyurethane tubing is recommended
Size:	1.1” W x 7.8” L x 5” H (28W x 198.5L x 127H (mm)
Weight:	9.2 ounces (260 g)

Call Today to Order 1-877-463-9376

Item Number:
ION-HFG9
