Item Number:
MTR-2000

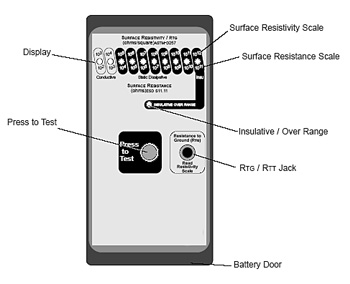

Simple one-touch operation



Surface Resistance/Resistivity Meter


The MTR-2000 provides accurate measurement of conductive, dissipative, and insulative materials for static control. Measures resistance per EOS/ESD S11.11, surface resistivity per ASTM D257, resistance to ground R(TG), and resistance point-to-point R(TT). Easy to use; place the unit on the item to be tested and press the green button. It's that simple! Features large 103 to 1012 scale. Great for checking bags, mats, floors, totes and coatings. Includes cables, battery, and instructions. Comes with calibration certificate.

SPECIFICATIONS:

ELECTRICAL
Measurement: 103 to 1012 ohms/square ASTM D257
xxxxxxxxxxxxx xx 102 to 1011 ohms EOS/ESD 11.11
Resolution: one order of magnitude
Accuracy: +1/2 decade
Power: 9 volt battery
Electrodes: Parallel Bar

MECHANICAL
Weight: 6.2 oz
Size: 115mm x 69mm x 26mm


Technical Documents:
» MTR 2000 Data Sheet
