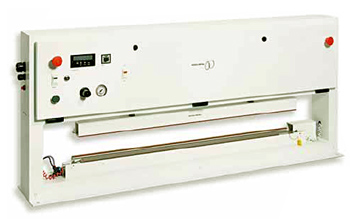

Industrial Feed-Through Sealer


We have completely redesigned this unit structurally and electronically. This Pneumatic Feed-Through Sealer is our workhorse model that is custom crafted from lightweight aluminum and designed for oversized and heavy-duty applications.

The welded rectangular frame provides the structural stability necessary to make seals up to 10 Feet long and 1” wide. Films can be fed from the front or the back of the machine and passed between the sealing jaws for uninterrupted flow.

This rugged and versatile machine allows for easy two-handed operation, with simple easy to read dials and several built-in features to provide optimum operator safety. This unit can also be adapted to an automatic conveyor system if needed.

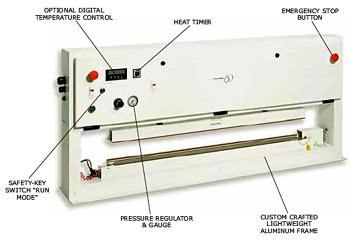

BUILT-IN FEATURES:
• Pneumatic Jaw Pressure Control
• 10 Second Adjustable Electronic Heat Timer
• 60 Second Adjustable Electronic Cool Timer
• Obstruction Sensing Safety Circuit
• Lockout Control Safety Key Switch

SPECIFICATIONS:
Widths: Q-Trim/Seal, 1/8", 1/4", 1/2", 1"
Lengths: from 40" to 10 feet in 10" increments
Requirements:
     Power: 120 Vac, 12 Amps (40")
     Air: 1.0 CFM @ 80 Psi
Size:
     Length: Seal Length + 18"
     Width: 9"
     Height: 24.5"
Approximate Weight: 110 lbs. (40" with 1/4" seal)

FACTORY OPTIONS:
• Call factory for details and custom requests
