PAK-210 ESD Auditor's Kit
Item Number
PAK-210

Contents
Options:

Packaging
Weight: 37 lbs (17 kg)
Length: 26 Inches (66 cm)
Width: 17.5 Inches (44.5 cm)
Height: 13 Inches (33 cm)

esd meter technical documents

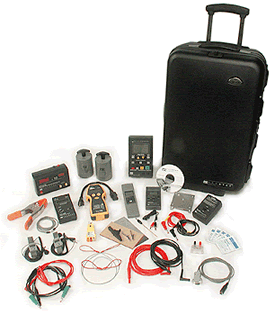

PAK-210 ESD Auditor's Kit


The PAK-210 ESD Auditor's Kit expands your measurement and audit capabilities. The Basic System Kit includes all of the equipment in the PFK-101 and PMK-151 Kits and adds the necessary equipment for testing wrist strap and footwear checkers, advanced ground and electrical circuit assessment and detailed wrist strap audits.

The PAK-210 includes PROSTAT's PRS-801 Resistance System Set with modified 5 pound conductive rubber electrodes, the PRS-801 wide range resistance system, and PROSTAT PRS-801 Connectivity software for computer data downloading. You can take measurements at 10 and 100 volts with accuracy within ±5%.

The PGT-61-164 SureTest® Universal Circuit Analyzer now tests circuits internationally. This patented unit incorporates all the branch circuit testing capabilities you need to effectively test and troubleshoot a branch circuit from 85-250 volts, and 45-65 Hz.

The PHT-770 Hygro-Thermometer is provided for temperature and humidity measurement. The kit also includes modified wrist straps for instrument and personnel grounding, a common point ground adapter plug, clamps, clips and an operator's manual. It's all contained in a molded carrying case with retractable handle and wheels.

Applications:
  • Combines resistance capabilities and advanced field measurement
  • Measure work surface, equipment, furniture and flooring resistance
  • Check ground and electrical circuit reliability
  • Measure wrist straps
  • Measure electrostatic fields
  • Analyze ionizer performance
  • Balance ionizers
  • Measure body voltages
  • Measure charge generation and decay time
  • Measure temperature and relative humidity
Test According To
ESD S1.1 Wrist Straps
ESD S2.1 Garments
ANSI/EOS/ESD S3.1 Ionization
ESD S4.1 Worksurfaces
EOS/ESD S6.1 Grounding
ANSI/ESDS7.1 Flooring
ESD S12.1 Seating

Technical Documents:
» PAK 210 Data Sheet
