PMK-151
Resistance System Kit
Resistance Measurements With Computer Download Capabilities

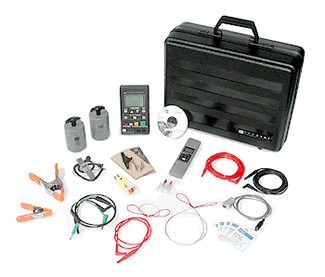

The PMK-151
Basic Measurement Kit has all the functionality of the PMK-152, but
adds computer downloading capabilities. It contains
all the instruments you need to take a variety of resistance measurements.
The PMK-151 includes
PROSTAT's PRS-801 Resistance Set with modified 5 pound
conductive rubber electrodes, the
PRS-801
wide range resistance meter, and PROSTAT PRS-801 Connectivity
software for computer data downloading. You can take measurements
at 10 and 100 volts with accuracy within ±5%. To measure temperature and humidity, the PROSTAT PHT-770 Hygro-Thermometer
is also included. The
PMK-151 comes with PROSTAT's unique 10" and 36" electrode
spacers, a ground adapter plug, operator's manual, clamps
and a variety of useful accessories. It's all self-contained
in
a sturdy carrying case. The PMK-151 is the most flexible
kit available for your general auditing needs. You may customize
the PMK-151 by adding various options.
Applications:
- Take basic resistance measurements
- Measure resistance to ground
- Measure resistance point to point
- Measure temperature and relative humidity
- Measure worksurfaces, equipment, garments,
furniture and flooring
- Download data to your Excel spreadsheet
| Test According
To |
ESD S2.1 Garments
ESD S4.1 Worksurfaces
ANSI/ESDS7.1 Flooring
ESD S12.1 Seating |
| Packaging
|
| Weight: 23 lbs (10.5 kg)
Length: 18.5 Inches (48 cm)
Width: 7.5 Inches (19 cm)
Height: 16 Inches (40 cm)
|
Technical Documents:
» PMK-151
Data Sheet |
