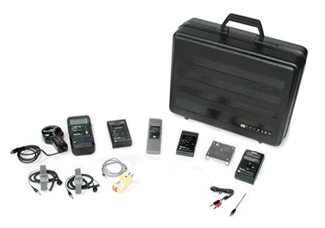

PIK-110 Ionization Kit

Measure ionizer performance with the upgradable PIK-110

The PIK-110 Ionizer Test Kit contains all the instrumentation included in the PFK-101 as well as advanced new equipment making it the most comprehensive portable ionizer test equipment available.

The PIK-110 includes the PFM-711A electrostatic Field Meter, CPM-720A Charge Plate Monitor and PCS-730 ±1 KV Charging Source for measuring ionizer decay and balance.

The PDT-740B Static Decay Timer measures the time required for a 1,000 volt charge to dissipate to less than 100, 50 or less than 10 volts in tenths of a second. This extremely useful accessory is used with the PFM-711A and the CPM-720A to evaluate ionizer or material decay time.

For measurements of air flow speed and temperature, the PAN-750 Anemometer makes the PIK-110 complete. The PAN-750 is battery-operated and portable. With multiple velocity settings it can also be used to measure wind velocities and check air conditioning and heating systems. It provides fast, accurate measurements with digital readability and the convenience of a remote sensor. It features simultaneous display of air velocity and temperature.

Also included is the PHT-770 Hygro-Thermometer for accurate ambient temperature and humidity readings, a common point ground adapter plug and a modified PWS-610M wrist strap.

The PROSTAT PIK-110 Kit is completely upgradable to meet your growing auditing demands on today's limited budgets. Customize your kit by adding various options.


  • Measure electrostatic fields
  • Balance ionizers and analyze ionizer performance
  • Measure temperature and relative humidity
  • Measure body voltages
  • Measure decay time
  • Measure charge generation
  • Measure air velocity
Test According To
ESD S2.1 Garments
ESD S4.1 Worksurfaces
ANSI/ESDS7.1 Flooring
ESD S12.1 Seating


Weight: 15 lbs (6.8 kg)
Length: 18.5 Inches (47 cm)
Width: 7.5 Inches (19 cm)
Height: 3.5 Inches (8.5 cm)

Technical Documents:
» PIK-110 Data Sheet
