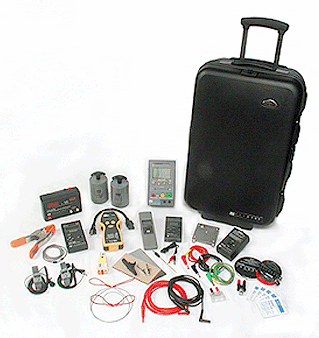

PSK-312 ESD Basic System Analysis Kit
Includes PRS-812 Resistance Meter Set. Designed for ANSI/ESD S20.20 Program Applications

Like the PSK-310, the PSK-312 Kit is the choice of advanced professionals and the ultimate in advanced auditing and material testing. The PSK-312 includes all of the equipment in the PAK-210 Kit and adds the Prostat PRF-911 Concentric Ring Fixture and the PTB-920 Dual Test Bed for surface and volume resistivity measurements of packaging and other flat materials.

The unique PRF-911 Concentric Ring Fixture is used with the PRS-812 Resistance Meter for reliable measurement of packaging material resistance and resistivity. It is used with the PTB-920 Dual Sided Test Bed to make resistance measurements recommended by EIA-541 (ASTM D 257) and ANSI/EOS/ESD S11.11-1993 guidelines for surface resistance and volume resistivity measurements. Because of its spring loaded center electrode, the PRF-911 Concentric Ring Fixture maintains even contact with materials under test and minimizes the need for frequent recalibration.

The PSK-312 also incorporates the PRS-812 Resistance Meter Set, making the kit one of a highly advanced static control measurement and auditing system.

Also included is the PHT-770 for temperature and humidity readings, modified wrist straps for instrument and personnel grounding, a common point ground adapter plug, clamps, clips and an operator's manual. It is all contained in a molded carrying case with retractable handle and wheels.

The PSK-312 is easily customized to meet the most demanding auditing or process evaluation requirements.

• Full ESD Auditing Capabilities
• Evaluate packaging materials
• Measure work surfaces, equipment, furniture and flooring resistance
• Check ground and electrical circuit reliability
• Measure decay time
• Measure wrist strap testers
• Test footwear and footwear testers
• Measure electrostatic fields
• Analyze ionizer performance
• Balance ionizers
• Measure body voltages
• Measure charge generation
• Evaluate garments
• Measure temperature and relative humidity
