• Digital Operator Interface and PLC Control:
Accurate Digital Timers
• Selectable Operating Modes:
Gas-Vac-Seal (1-99 cycles) Vac-Seal Seal Only
• Detachable Seal Bars:
Upgradeable to seal lengths up to 60”
• NEMA 4 Stainless Steel Enclosure:
Laser Cut and Welded Seams
Easy to clean
• Gas Purge Standard
• High-Flow, Retracting Vacuum
Nozzles:
Two Nozzles (Small Body)
Four Nozzles (Large Body)
• Upper and Lower Heater elements (Flat)
Fast Seal Times
Upper/Both Heater Element Toggle Switch
• High Pressure Seal Jaws
Seal Difficult Materials
• Safe, Low Pressure Jaw Close
• Extended Element Life
New Element Design Eliminates Hot Ends
New Element Tensioner Design Reduces
Element Buckling

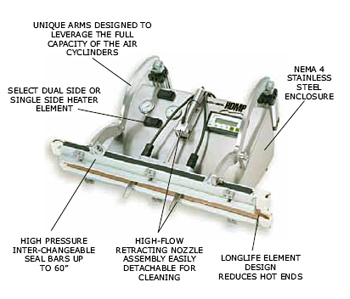

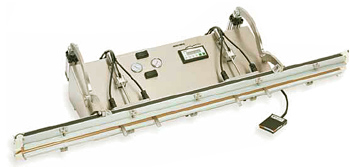

Heavy-Duty Multi-Purpose
Impulse Sealer and Gas-Vacuum sealer
The HDMP Sealer and Gas-Vacuum Sealer Series have
the Power and Control it takes to handle virtually any
sealing, vacuum sealing or modified-atmosphere
packaging application.
The HDMP’s user selectable Dual Side or Single Side
Heating and High Pressure Seal Bars, make this
sealer series ideally suited for applications that
previously were a challenge
for one machine to handle.
The configurable Seal Jaws give
you the flexibility to change your seal
length without purchasing a new machine.
The open-ended jaw design enables coupling
with a conveyor system for end-to-end
through-put for a high capacity sealing station.
The HDMP is built Accu-Seal tough. A “Muscle
Machine”, designed for flexibility and years of reliable
trouble-free performance.
The HDMP withstands the harshest environments of
industrial, electronics, chemical, food and perishable
product packaging.
The easily detached retracting nozzle assembly and
NEMA 4 rated stainless steel enclosure allow for
complete cleaning and sterilization.
Digital Operator Interface and PLC control with
Multiple Gas-Vac Sealing modes
FACTORY OPTIONS: • 3/8” Seal Width
• Water Trap Filter
• Increased Suction Flow
• Bag Stretcher
OPTIONAL ACCESSORIES: • Ergonomic Multi-Position Accu-Seal Stand
• Standard Industrial Air Compressor
• Ultra-Quiet Lab/Office Compressor
• Call factory for special applications and custom
design requests.
Item
Number: VS-750-1/8
VS-750-1/4
VS-750

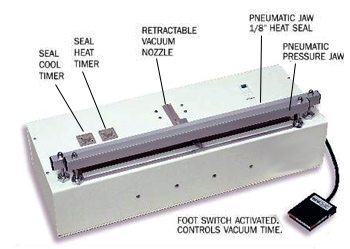

Vacuum Sealer
Value priced
vacuum sealing. The VS-750
provides the features required
to dry
pack bags.
A retractable nozzle is used
to improve bag evacuation and
save bag space. The operator
controls vacuum time by using
the foot pedal. Timers are
provided for heat sealing and
cooling. By placing the heat
seal jaw close to the top of
the bag, the amount of bag
used in the sealing process
is reduced. Options include
a 1/4" seal bar and a
support tray. 1/8" seal
bar model is pictured. The VS-750 Vacuum Sealer utilizes compressed air so no vacuum is required.
FEATURES:
Value priced vacuum sealing.
Provides only the features required
to dry pack bags.
Electronic timers for heat and
dwell.
Retracting nozzle.
20 inch seal length.
Optional 1/4 inch seal bar.
No
Return: 4-6 week lead
time
SPECIFICATIONS:
Seal Length:
20"
Seal Width: 1/8"
Vacuum
Pressure: <26 Hg
Max Suction: 0.8 CFM
Air Consumption: 1.75
CFM
Length:
25.5"
Width: 10"
Height: 9"
Electrical Power: 120 VAC
Compressed Air: 80 PSI
Vacuum Pump: Not Required
Item
Number: VS-1000 (L)
VS-1000
(L) Vacuum
Sealer
This time-tested vacuum
sealer design has been sealing bags
since 1990. A fixed position nozzle
evacuates the bag. Timers for vacuum,
sealing, and cooling are activated
by a single foot pedal, and insure
that the bag is evacuated and sealed.
Gas Purge option and Support Tray are
available. The VS-1000(L) Vacuum Sealer utilizes compressed air so no vacuum is required. FEATURES:
Time-tested
vacuum sealer design.
Electronic timers for
heat and dwell.
Fixed position nozzle.
Vacuum pressure gauge.
20, 25, or 30 inch seal
lengths available.
Optional Nitrogen gas
purge available (Factory Install Only).
The next generation of vacuum sealers is here. With
auto retracting vacuum/gas nozzles, smart pad electronic control
center, and a bag-saving jaw configuration, the VS-1500(L) is state
of the art. Just insert the bag over the nozzle, and press the
foot switch to get consistent vacuum packaging. Standard unit features
one retracting vacuum nozzle, on-board electronic user guide and
help guide. The front jaw closes off the bag while the back jaw
applies a 1/4" heat seal. This
arrangement saves space in the bag by applying the seal closer
to the bag opening. Optional equipment includes a second retractable
nozzle for gas purging (pictured). See data sheet for part numbers. The VS-1500(L) Vacuum Sealer utilizes compressed air so no vacuum is required.
FEATURES:
State of the art.
Electronic control panel for repeatable operation.
Retracting nozzle. Vacuum pressure gauge.
20, 25, or 30 inch seal lengths available.
Gas purge option available.
No Return: 4-6 week lead time.
SPECIFICATIONS:
Seal Length: 20", 25", 30"
Seal Width: 1/4"
Vacuum Pressure: <26 Hg
Max Suction: <1.4 CFM
Air Consumption: 2.4 CFM
Length: Jaw + 5.5"
Width: 9.5"
Height: 8.5"
Electrical Power: 120 VAC
Compressed Air: 80 PSI
Vacuum Pump: Not Required
Selection
Guide
Model
Digital
Controls
Retractable
Nozzle
Foot
Pedal Operation
VS-1500
(L)
Full featured. Design reduces skill needed to achieve repeatable,
secure vacuum sealed bags.
VS-750
1/8|7/4
Cost Effective. Retractable nozzle for wrinkle free seals. Operator
controls timing with foot pedal.
VS-1000
Time tested. Units in use for 10 years. Fixed nozzle design requires
more operator skill to achieve wrinkle-free seals.
